YTJNW10-32 10kV outdoor zero sequence voltage sensor
1. Product overview
YTJNW10-32 10kV outdoor zero-sequence voltage sensor is a 10kV three-phase AC voltage sensor with a capacitive voltage divider structure, which can be used to measure the three-phase voltage and zero-sequence voltage of ZW32 outdoor pole-mounted switches

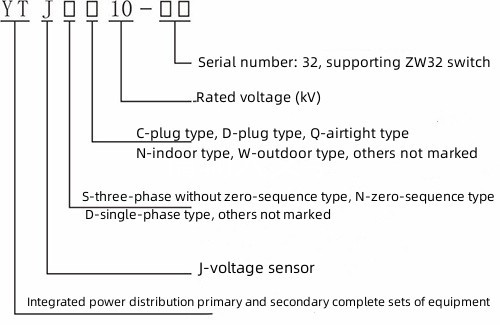

Product naming rules:
2 . Features
This product is different from the traditional electromagnetic AC transformer. It adopts a capacitive voltage divider structure and has the characteristics of high precision, good linearity, wide frequency band, small size, light weight, high reliability, and high ground impedance (≥1000MΩ). It is widely used in the measurement of three-phase voltage and zero-sequence voltage in ZW32 outdoor pole-mounted switch for primary and secondary fusion of distribution network.
3. Implementation and Reference Standards
3.1. T/CES 018-2018 Specifications for 10kV and 20kV AC Sensors in Distribution Networks
3.2. GB/T 20840.7-2007 Transformers Part 7: Electronic Voltage Transformers
3.3.IEC-60044-7 electronic voltage transformer
4. Basic parameters
Rated primary voltage: 10000/√3 V
Rated secondary zero sequence voltage: 6.5/3 V
Accuracy level: 1/3P
Rated voltage factor: 1.2 (continuous), 1.9 (8h)
Rated load: 5MΩ
Power frequency withstand voltage: 42kV (1min)
Partial discharge level: ≤10pC (14.4kV)
Lightning impulse withstand voltage: 75kV/85kV
Working environment: -40℃～70℃
5. Structural parameters
5.1. Size: 880*248*76mm (base size can be customized)
v
5.2. Test report
